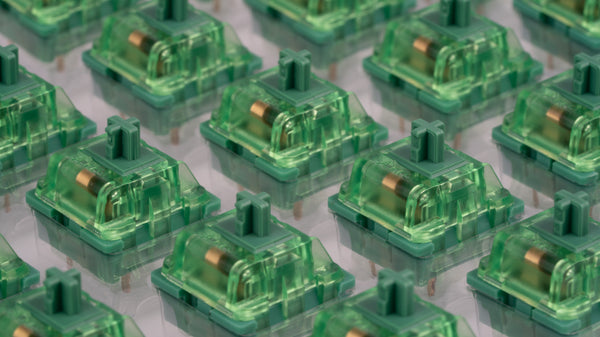

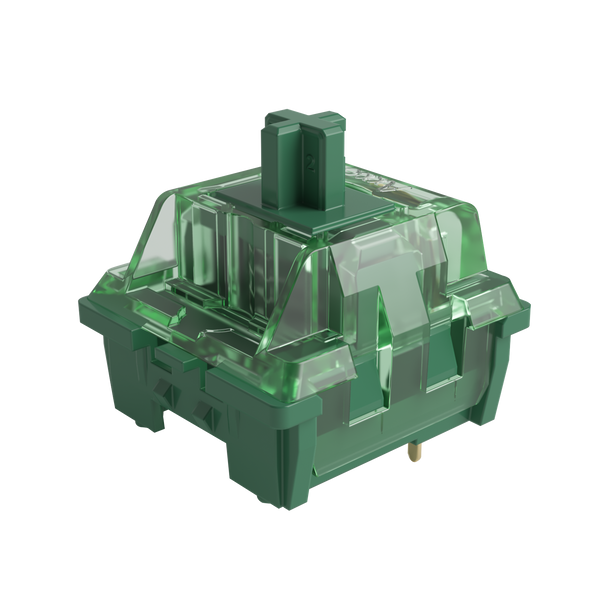

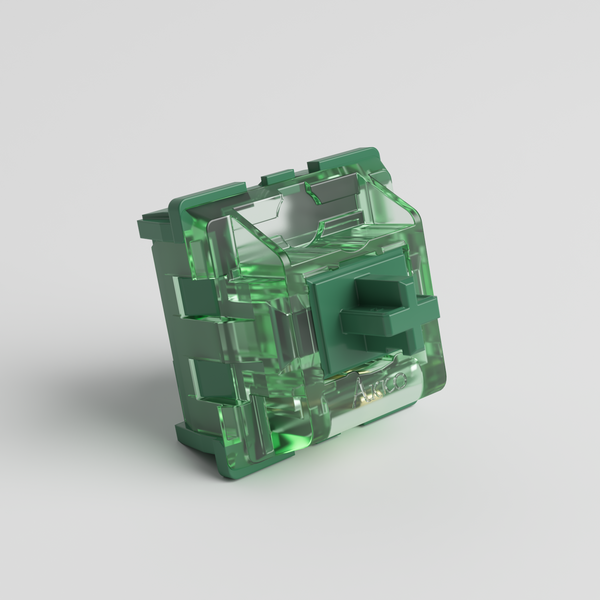

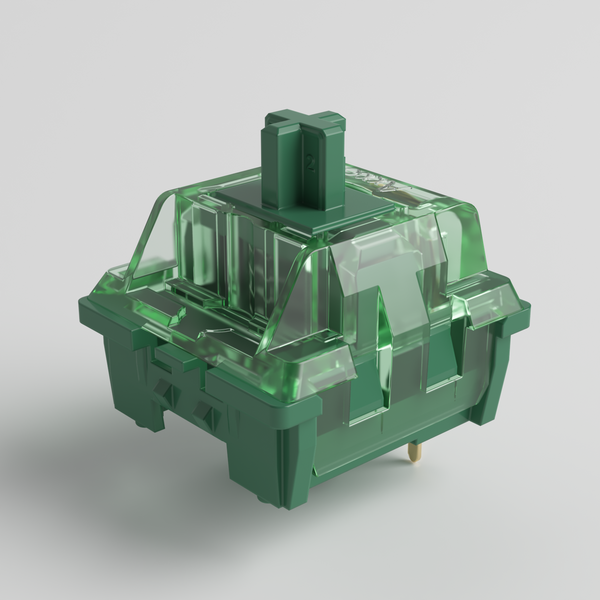

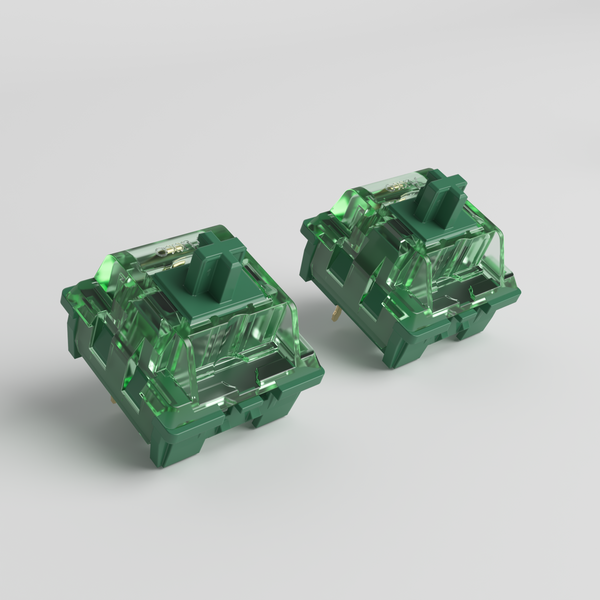

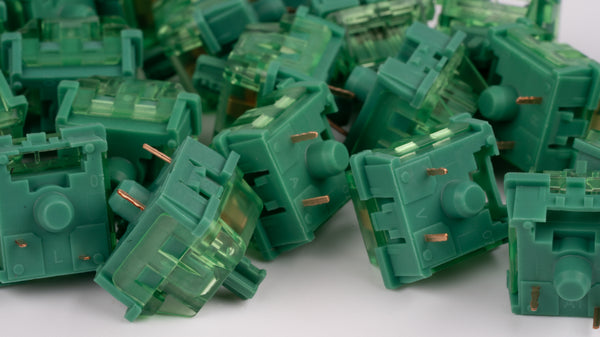

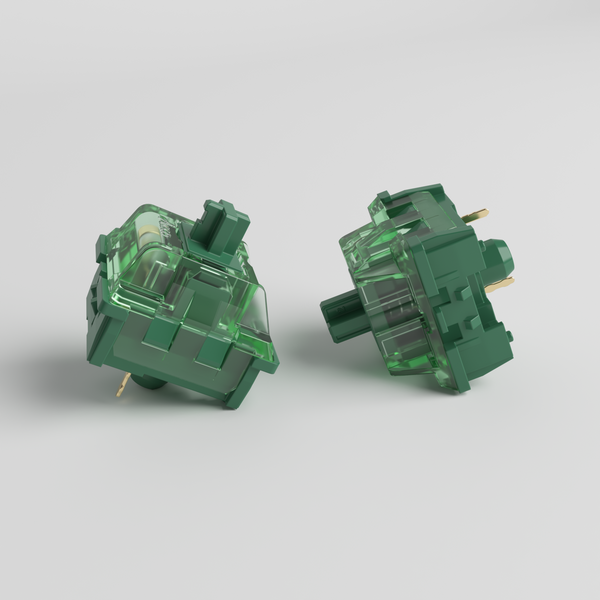

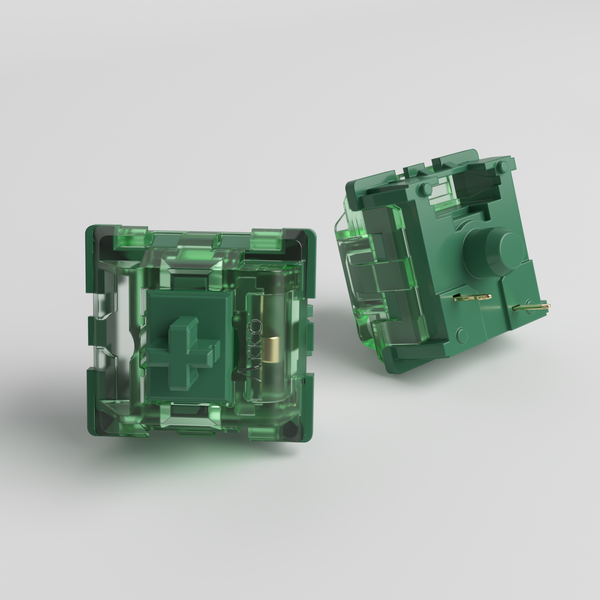

Matcha Green Switches (Lubed)

Matcha Green is a linear switch that is part of the Akko CS series. The Green Matcha are hand lubed switches using Krytox GPL105 and Krytox GPL-205 G0.

Type: Linear
Pre-Travel: 1.9 ± 0.3mm
Total Travel: 4.0 - 0.3mm
End Force: 50gf ± 5gf

About the Switches

Linear switch. These have a smooth keypress with no tactile bump.
Sold in units of 45.
Materials:

Stem: POM
Top: polycarbonate (PC)
Bottom: polyamide (PA is a type of nylon)

Plate mount.
3 pin
Pre-lubed by hand, read below for more information.
Packaged in a tray with cardboard slip cover.
Designed and manufactured by Akko.

Switches 101

A keyboard switch is the little component that sits underneath the keycap and connects to the keyboard PCB. On a mechanical keyboard, every key has its own switch.

How many switches do I need?

For common sizes, here are some estimates (these can vary slightly by keyboard model):

Full-size (100%): 104
TKL (Tenkeyless): 87
75%: 81
- Our Portico75 Keyboard uses 79 switches.
65%: 68

Our Portico Keyboard uses 67 switches.

60%: 61

We recommend buying enough to fill your board, with some extra to spare.

For more switch basics, read our Switches 101 article on Keyboard University →

The Standard of Akko Factor-Lube

The standard "factory-lubed" switches have lubricant applied to: 1. bottom housing stem rails, 2. spring 3. stem and 4. spring cylinder. Factory-lubed switches can be further categorized as machine lubed and hand lubed. The technology of machine lubrication is not yet well developed and thus the amount of lube applied on every switch cannot be consistent. This can cause the switches to be over lubed with spillage. However, these switches are hand lubed are more uniform and controlled, but result in a higher labor cost. In some scenarios, "factory-lubed" means the switches are being briefly lubricated during manufacturing. Therefore, we want to clear up a bit about the difference.

The hand-lubed version of Akko CS switches

The bottom housing stem rail and cylinder are hand-lubed in addition to the dry film lubrication on stem and spring as well as the machine lubrication on the metal leaf corners.
